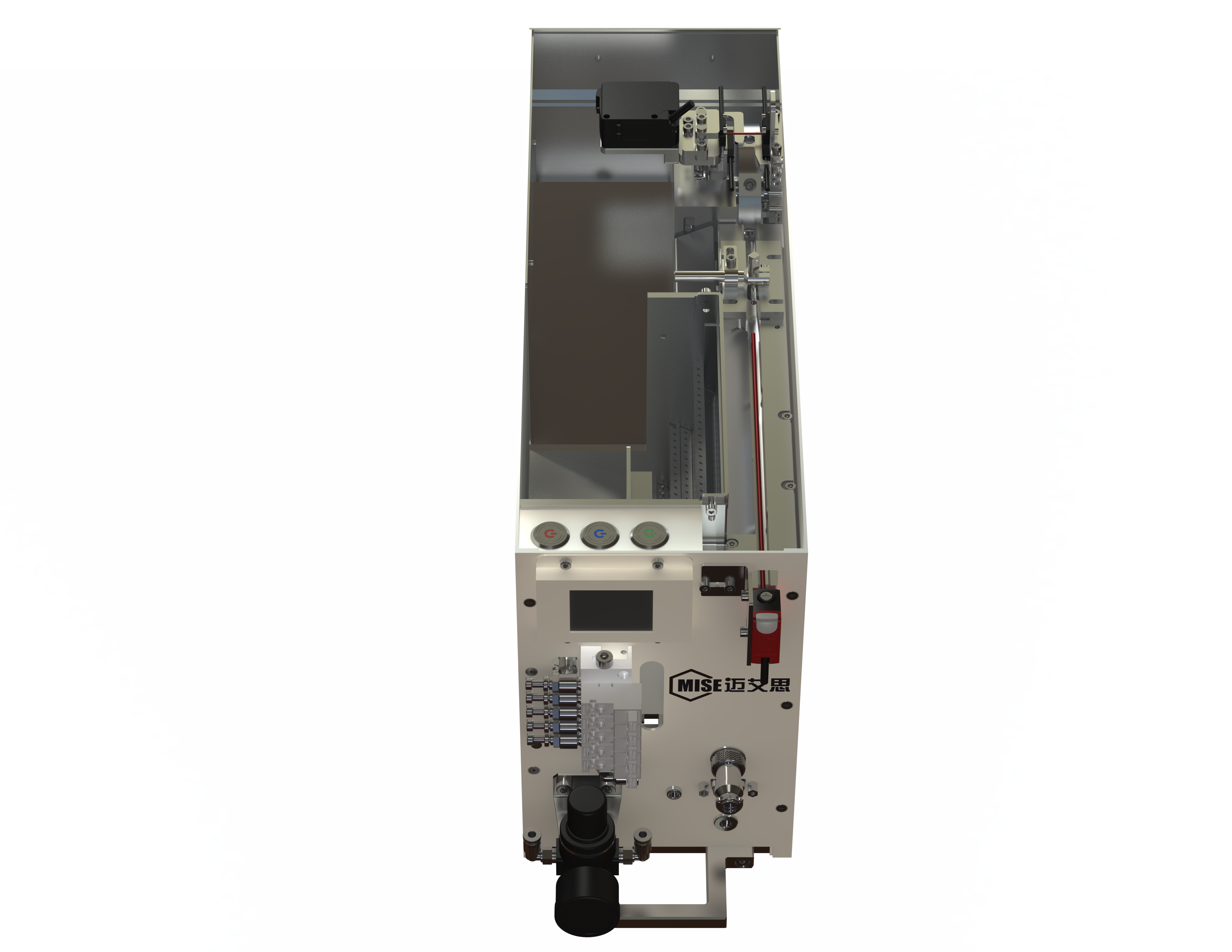

Push Type Vacuum Suction Stud Feeder
Model：MIPF-140WR
Width across flats 5~7mm, L18~45mm, vibration-free design
Features
1
Designed for automation equipment with dedicated RS485/IO
2
Fault alarm, adjustable loading delay and turntable delay
3
Equipped with 2.0-inch touch screen, intuitive and convenient parameter adjustment
4
Conveyor belt feeding design, vibration-free, multiple units can be used side by side
Specifications
| Parameter | Value |
|---|---|
| Screw Spec | W5~7mm |
| Screw Length | L18~45mm |
| Feed Speed | -PCS/MIN |
| Capacity | 400(M3*20)PCS |
| Communication | RS485/IO |
| Dimensions | 470×140×260mm |

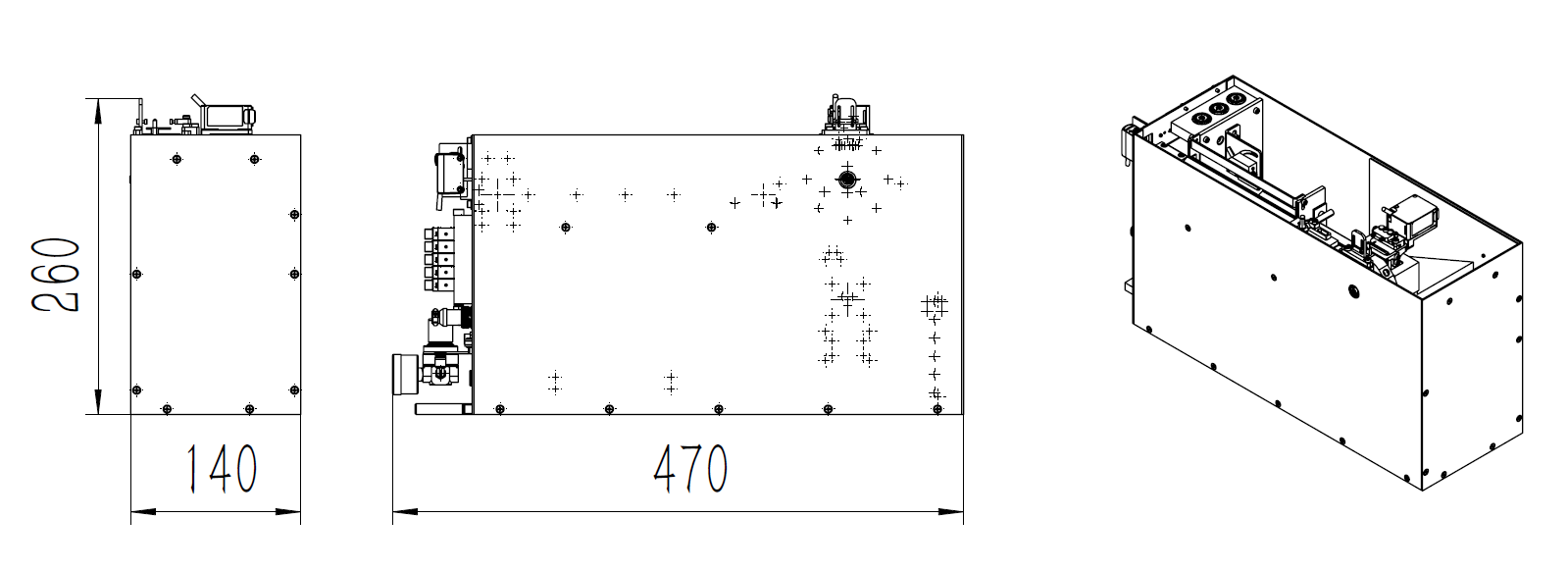

📐Dimensions(mm)
Dimensions: 470×140×260mm
Downloads
CAD
CAD Drawing
DWG·639KB
STEP
3D STEP File
XZ·17MB (压缩)
PDF
User Manual
Chinese·PDF·640KB
