Applications

Select feeding and fastening solutions by workstation application

Typical workstation applications show the suitable scenario, feeding method, pickup method, fastening process and related equipment configuration.

Send Sample Requirements View Products

Solution evaluation and selection process

Confirm station requirements

Review screw specifications, product structure, fastening positions, target cycle time and available space.

Select feeding method

Evaluate air-blow, turntable, push-up or bowl feeding according to screw shape and pickup direction.

Configure pickup and fastening

Define manual pickup, robot pickup, vacuum pickup, automatic fastening or controller integration requirements.

Recommend equipment setup

Provide a combined setup for feeder, fastening module, controller and production-line interface.

01/Automatic fastening module

Air-blow feeding + vacuum pickup + automatic fastening

For stations where screws are blown through a tube to the bit, picked up by vacuum and fastened automatically.

Application method

1Feeder sorts screws and blows them by cycle
2Vacuum bit picks screws to prevent dropping
3Fastening module completes downward fastening with I/O integration

Suitable for

Electronics housingsPlastic parts assemblyCompact automation stations

Related equipment

Air-blow feederVacuum fastening headFastening controller

Open YouTube →

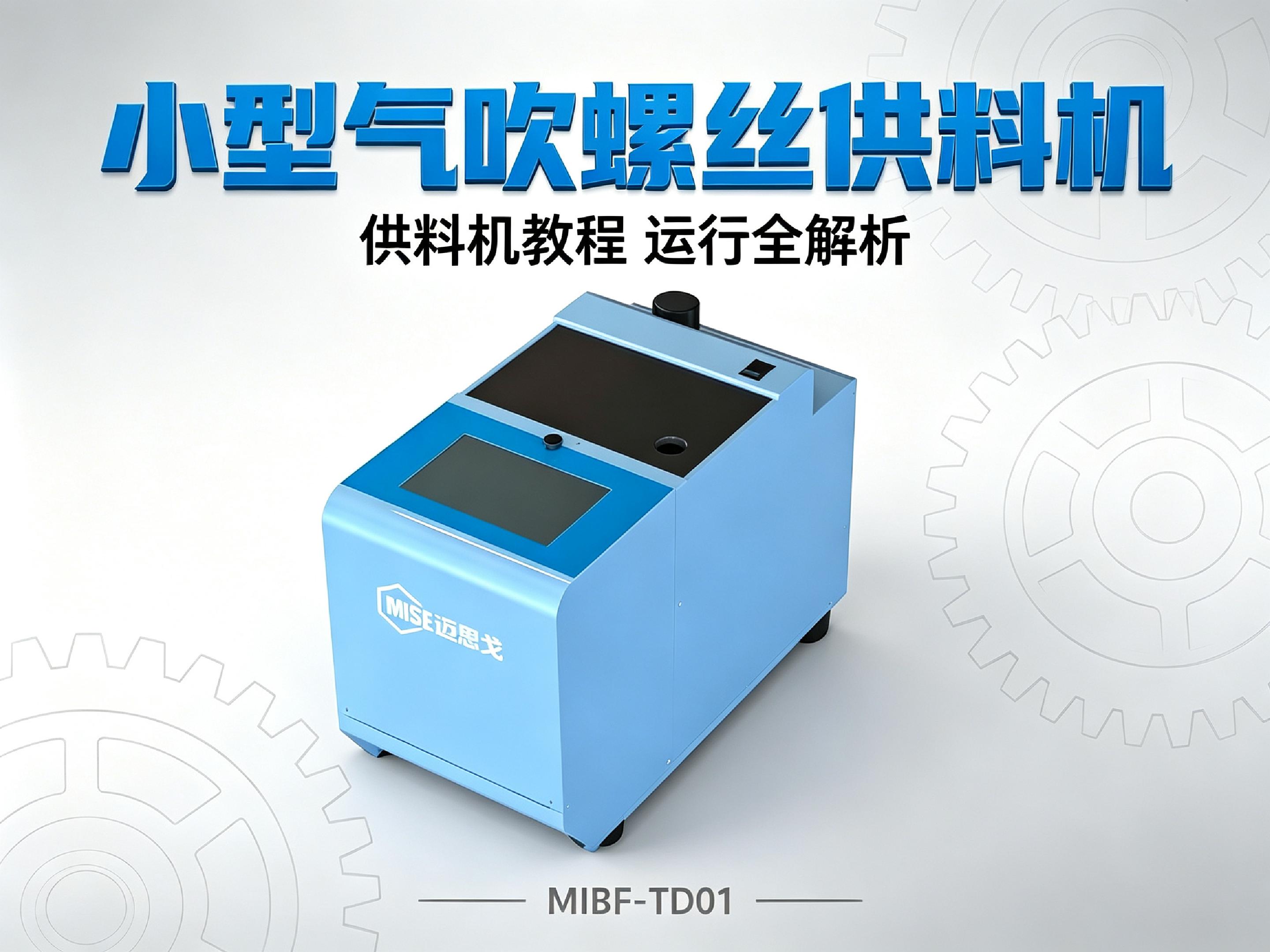

02/Screw feeder

Compact air-blow screw feeder for auto fastening

For compact machines that need continuous screw feeding to the fastening end-effector.

Application method

1Screws are sorted inside the feeder
2Air tube delivers screws to the fastening mechanism
3Works with electric screwdriver, robot or module

Suitable for

Automatic screwdriversSingle-station retrofitMulti-station equipment

Related equipment

Air-blow screw feederElectric screwdriverFastening module

Open YouTube →

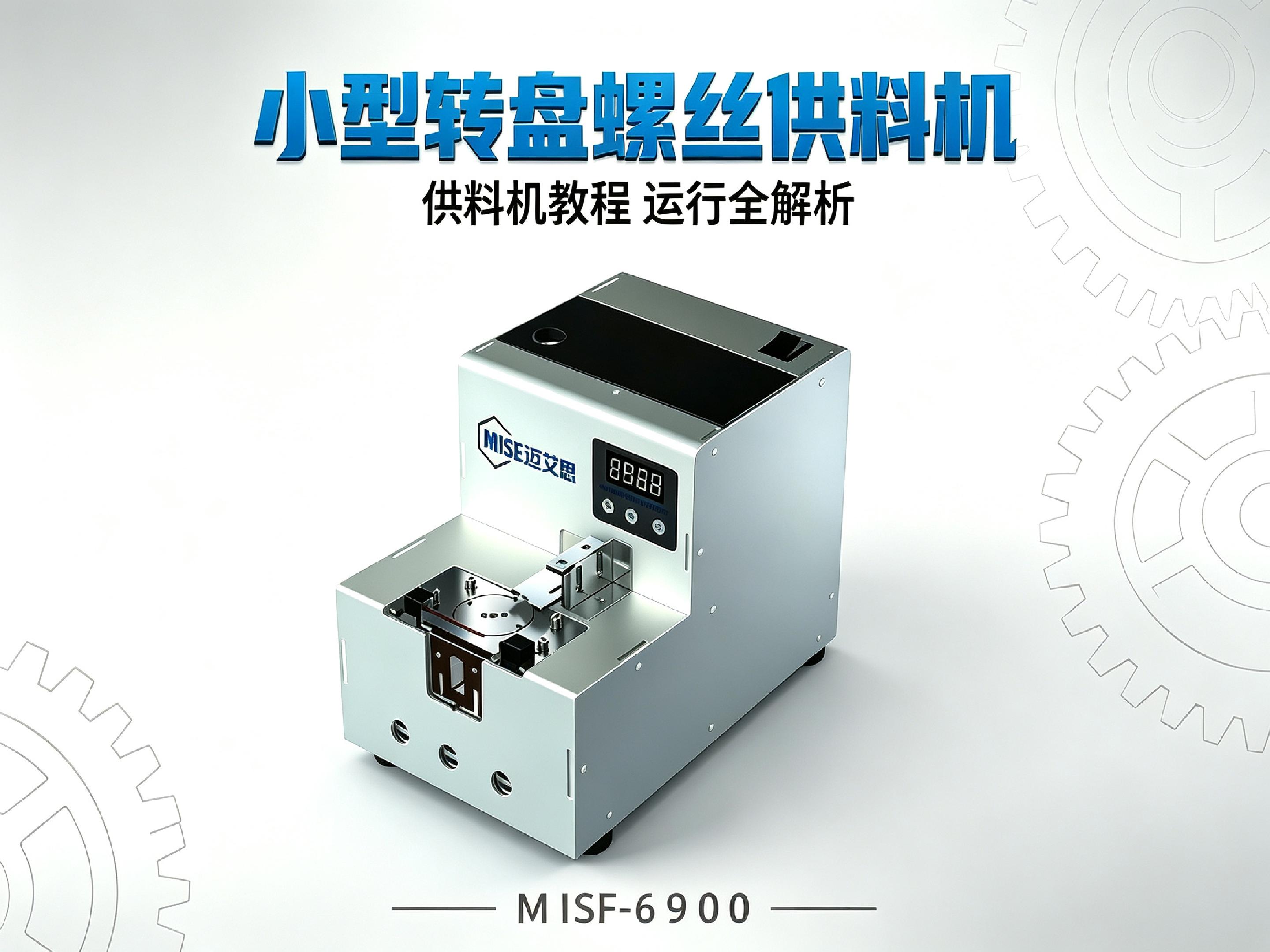

03/Turntable feeding · manual pickup

Turntable screw feeding for manual pickup

For manual or semi-automatic fastening stations where the turntable presents screws at a fixed pickup point for operators or drivers.

Application method

1Turntable indexes screws to a fixed pickup position
2Operator or handheld driver picks from the position
3Suitable for desktop stations, manual fastening and cycle-time improvement

Suitable for

Manual fasteningSemi-auto stationDesktop assembly

Related equipment

Turntable screw feederHandheld screwdriverPickup positioning point

Open YouTube →

04/Turntable feeding · robot pickup

Turntable screw feeding for robotic pickup

For robots, XYZ modules or custom machines that pick screws from a fixed point and transfer them to assembly or fastening positions.

Application method

1Turntable completes sorting and positioning
2Robot or module picks screws from the fixed point
3Completion signal can feed back to the main machine for cycle synchronization

Suitable for

Robot pickupXYZ moduleCustom automation

Related equipment

Turntable screw feederRobot pickup mechanismCompletion signal integration

Open YouTube →

05/Turntable feeding · side pickup

Turntable screw feeder side-pick application

Shows both internal testing and production-line use: screw sorting, side pickup and fastening rhythm are verified before integration into a continuous assembly station.

Application method

1Turntable sorts bulk screws to a fixed pickup point
2Side-pick mechanism or fastening module picks from the position
3Testing confirms sorting, pickup and rhythm before line integration

Suitable for

Side pickupSemi-auto fasteningContinuous production lines

Related equipment

Turntable screw feederSide-pick mechanismFastening module

Open YouTube →

06/Semi-automatic fastening

Push-up feeding for manual and semi-auto fastening stations

For compact or operator-assisted stations, pushing screws to a pickup position to improve handling efficiency.

Application method

1Feeder pushes screws out one by one
2Operator or screwdriver picks from a fixed point
3Can be designed as 1-out-1, 1-out-2 or multi-output

Suitable for

Manual fasteningDesktop stationCycle-time improvement

Related equipment

Push-up screw feederSmart screwdriverPositioning arm

Open YouTube →

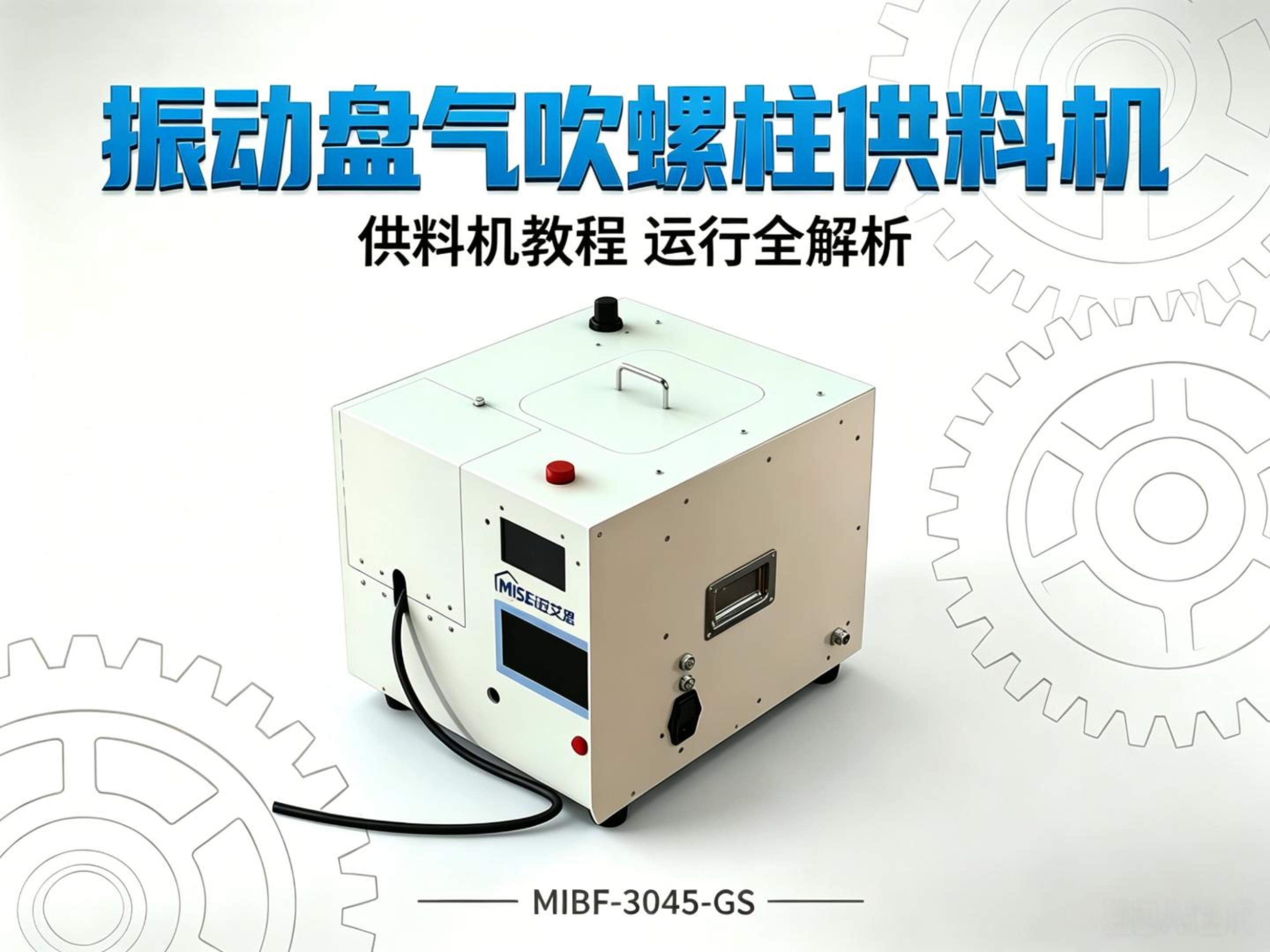

Bowl feeder + air-blow stud feeding solution

Video material in preparation

07/Stud feeding

Bowl feeder + air-blow stud feeding solution

For studs, special parts or non-standard fasteners that require bowl sorting before air-blow delivery.

Application method

1Bowl feeder orients studs by geometry
2Air-blow delivers them to assembly or fastening position
3Tracks, escapement and sensors are customized by sample

Suitable for

StudsSpecial fastenersCustom feeding

Related equipment

Bowl feederAir-blow escapementStud feeder

Open YouTube →

08/Stud feeding · featured

Push-up stud feeder application

For studs, pins or special fasteners that need to be pushed up one by one to a pickup position for manual, robotic or module pickup.

Application method

1Feeding mechanism orients studs by direction
2Push-up unit presents studs one by one at a fixed pickup point
3Operator, robot or assembly module picks the stud for the next process

Suitable for

Stud feedingPin feedingSpecial fastener pickup

Related equipment

Push-up stud feederPickup positioning unitCustom feeding module

Open YouTube →

Integrated blow-feed and fastening module

Video material in preparation

09/Integrated fastening solution

Integrated blow-feed and fastening module

Combines feeding, delivery and fastening actuator into one module for integration into custom automation equipment.

Application method

1Feeding and fastening mechanism delivered as a module
2Machine builder reserves space and control signals
3Structure can be adjusted by height, angle and cycle time

Suitable for

Custom automationMachine integratorsMulti-station fastening

Related equipment

Blow-feed fastening moduleFeederFastening controller

Open YouTube →

Smart torque control and automatic fastening management

Video material in preparation

10/Fastening controller

Smart torque control and automatic fastening management

For applications requiring torque parameter management, process control, alarms and machine integration.

Application method

1Set torque, speed, fastening time and process parameters
2Exchange start, completion and alarm signals
3Works with feeder, driver and fastening module as a complete system

Suitable for

Torque controlProcess managementLine integration

Related equipment

Fastening controllerSmart screwdriverAutomatic fastening module

Open YouTube →

Custom evaluation

A matching video is helpful, but not required

Screw feeding and fastening systems are usually selected by sample and workstation constraints. Send your screw specification, product photos, fastening positions and target cycle time; MISE will map the case into a practical configuration.

Send Sample Requirements
