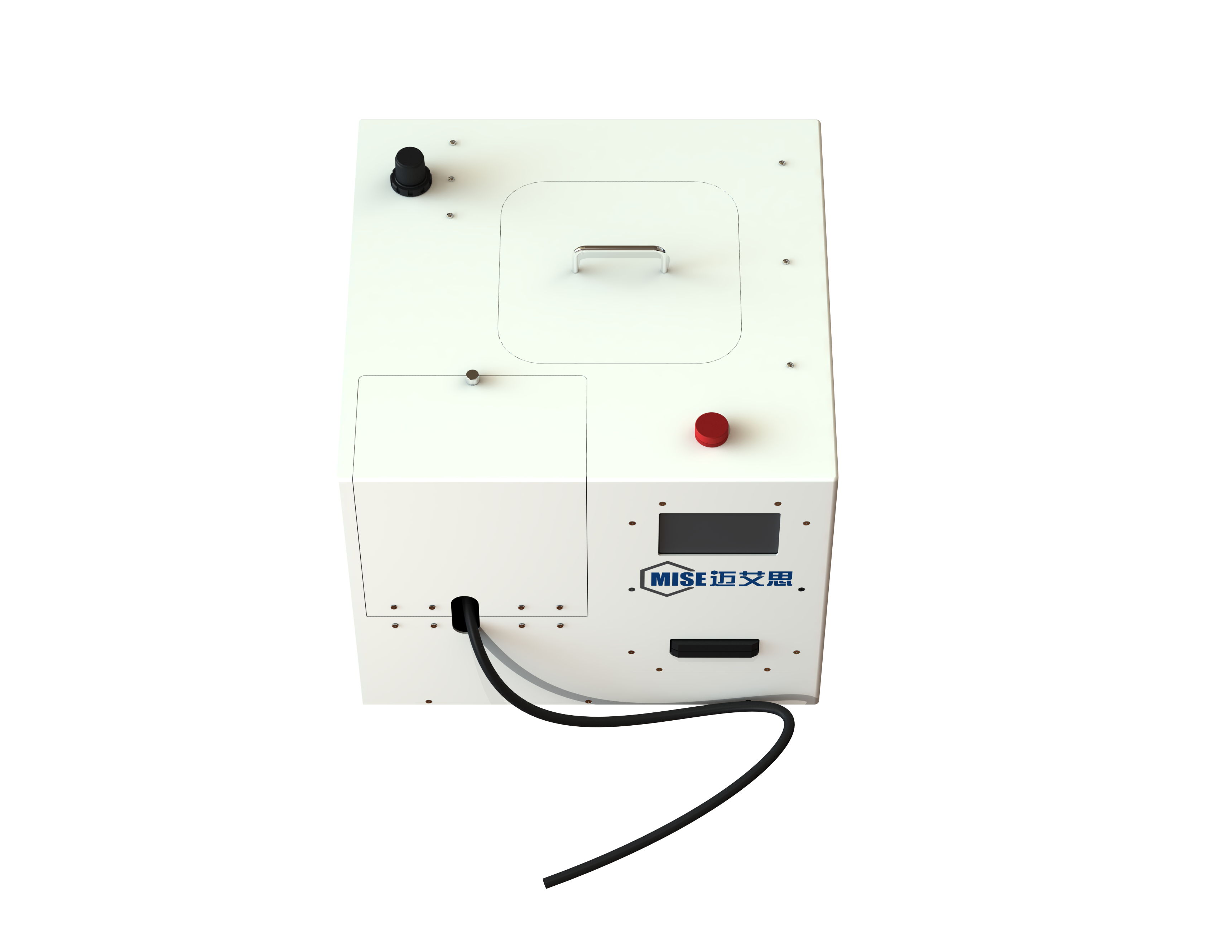

Vibrating Plate Air Blow Stud Feeder
Model：MIBF-3045-GS
Width across flats 4~8mm, L15~35mm, 10~12PCS/MIN
Features
1
Equipped with sensors to monitor material status, automatic alarm and waiting for refill on shortage, no frequent manual supervision needed
2
Designed for automation equipment with dedicated RS485/IO signal communication
3
Reliable feeding with high speed, adjustable loading delay and vibration
4
Equipped with 5.0-inch touch screen, intuitive and convenient parameter adjustment
5
After sorting and screening, output materials have extremely high consistency and continuity
Specifications
| Parameter | Value |
|---|---|
| Screw Spec | W4~8mm |
| Screw Length | L15~35mm |
| Feed Speed | 10~12PCS/MIN |
| Capacity | 1500(M3*20)PCS |
| Communication | RS485/IO |
| Dimensions | 424×434.9×384.5mm |

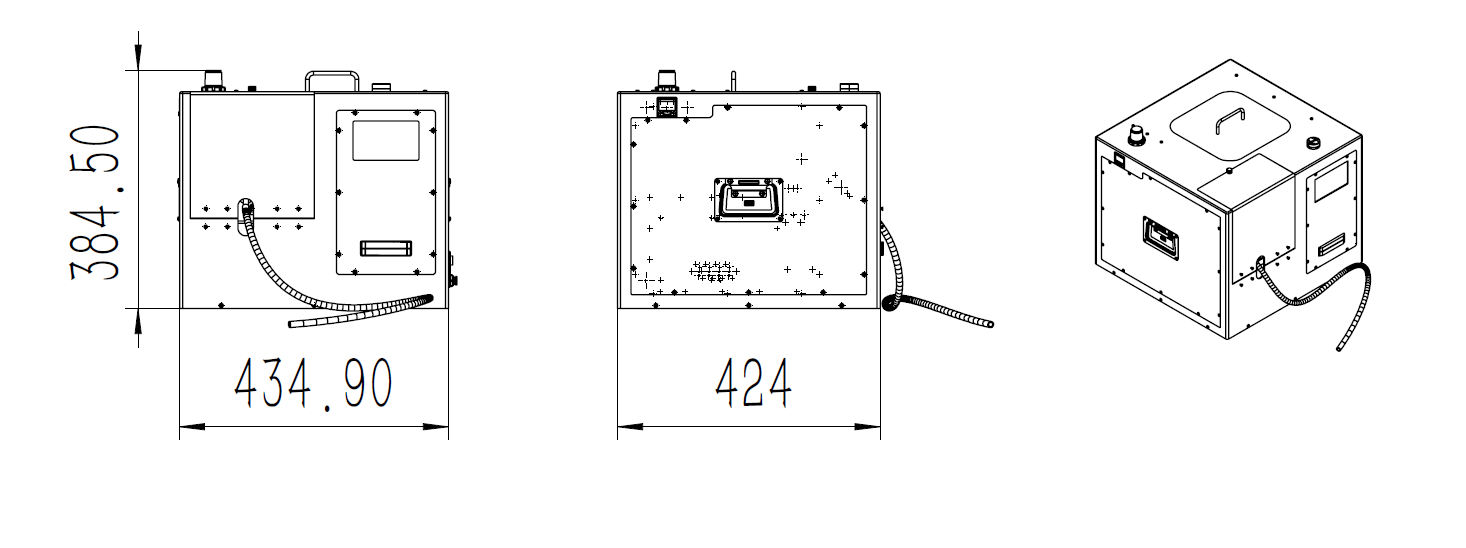

📐Dimensions(mm)
Dimensions: 424×434.9×384.5mm
Downloads
CAD
CAD Drawing
DWG·639KB
STEP
3D STEP File
GZ·15MB (压缩)
PDF
User Manual
Chinese·PDF·581KB
