Features
1
Universal type, wide screw range, freely adjustable rail spacing
2
Independent speed control for turntable and rail feeding, adjustable as needed
3
Precise positioning, improved efficiency
4
Screw counting function, fault alarm, adjustable loading and vibration delay
5
Completion signal output, significantly improves production efficiency when connected to automation equipment
Specifications
| Parameter | Value |
|---|---|
| Screw Spec | φ1.0~4.0mm |
| Screw Length | L≤12mm |
| Feed Speed | 50-70PCS/MIN |
| Capacity | 1000(M2.5*10)PCS |
| Communication | Completion Signal |
| Dimensions | 203×126×155mm |

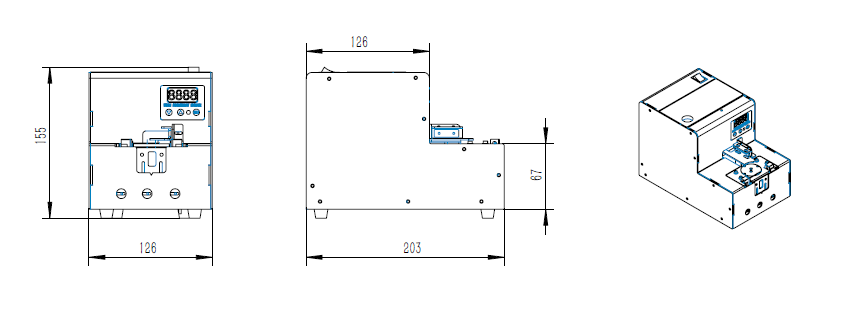

📐Dimensions(mm)
尺寸: 203×126×155mm
