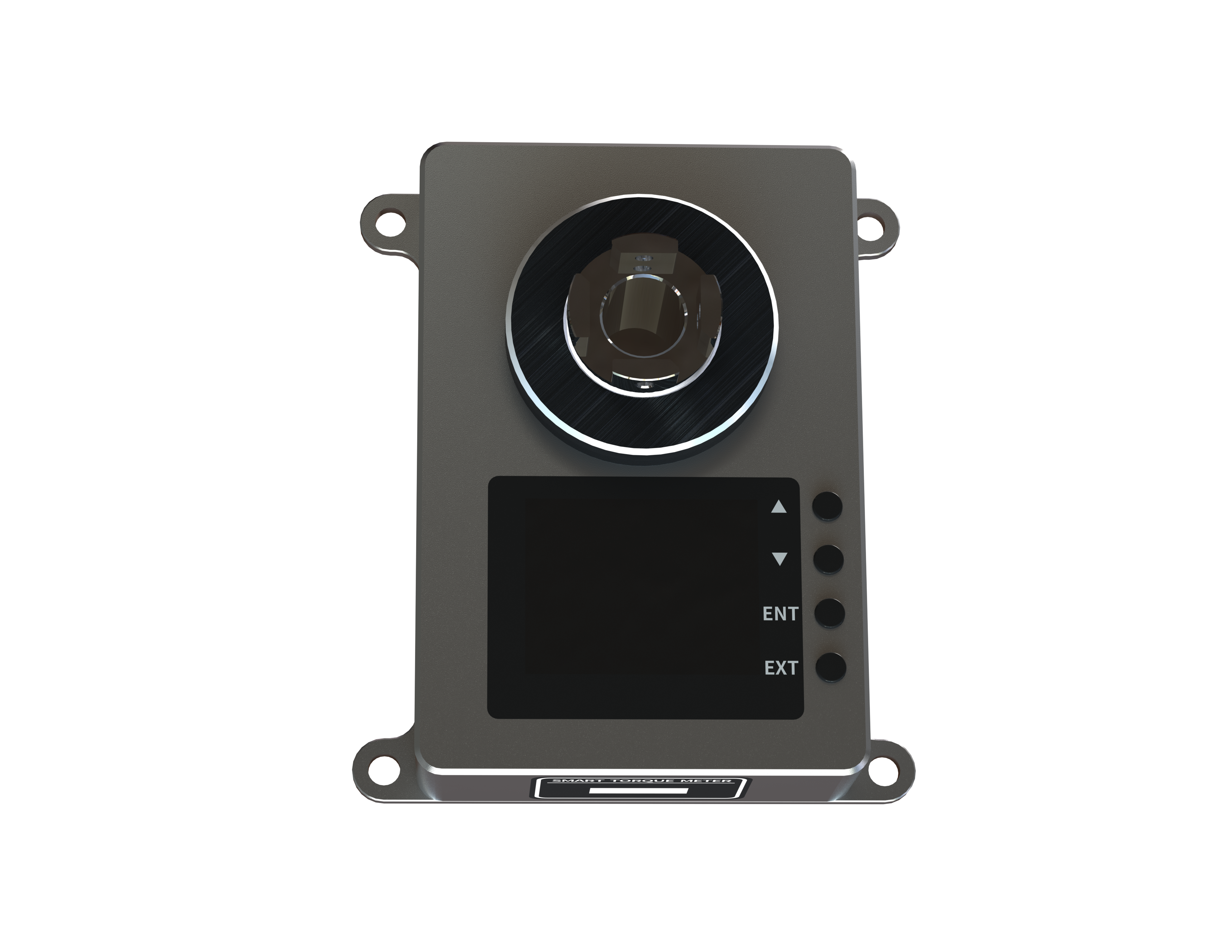

AT-08 / AT-08E Torque Tester
Model：AT-08
0.2~8kgf.cm range, non-linearity ≤0.5%F.S. AT-08E supports Ethernet communication.
Features
AT-08 is the standard model; AT-08E adds Ethernet communication
0.2~8kgf.cm range for common assembly screwdriver testing
Non-linearity ≤0.5%F.S; overload above 120%F.S may permanently damage the sensor
RS485 Modbus RTU and RS232 ASCII auto output; E models support TCP/IP network communication
PASS/FAIL judgment with Y0/Y1 digital outputs for external control systems
Supports kgf.cm, N.m, mN.m and lbf.in measurement units
Specifications
| Parameter | Value |
|---|---|
| Range | 0.2~8kgf.cm |
| Non-linearity | ≤0.5%F.S |
| Model / Communication | AT-08 standard / AT-08E=Ethernet |
| Communication Protocol | RS485 Modbus RTU / RS232 ASCII / TCP/IP (AT-08E) |
| Digital I/O | NPN input X0-X3; transistor output Y0-Y3; PASS=Y0, FAIL=Y1 |
| Measurement Units | kgf.cm / N.m / mN.m / lbf.in |
| Power | DC12V, 160mA, max 3W |
| Compatibility | All Electric Screwdrivers |
| Dimensions | 120×106×51mm |
📐Dimensions(mm)
Dimensions: 120×106×51mm
Downloads
AT-08 / AT-08E Torque Tester
Chinese · PDF · 382KB
AT Series Torque Tester User Manual
Chinese · PDF · 463KB
AT Torque Tester Hardware Specification (English)
English · PDF · 184KB
AT Series Torque Tester User Manual (English)
English · PDF · 782KB
AT Torque Tester 3D STEP File
Form requiredSTEP · 10.9MB
