Features
1
Universal type, suitable for wide range of screws, adjustable rail spacing
2
Reliable feeding with high speed, supports 1-out-1, 1-out-2, 1-out-4 configurations
3
Designed for automation equipment with dedicated IO signal communication port
4
Real-time screw counting, fault alarm, adjustable loading/vibration delay, free signal type switching, one-click multi-program switching
5
Equipped with 4.3-inch touch screen, intuitive and convenient parameter adjustment
Specifications
| Parameter | Value |
|---|---|
| Screw Spec | φ1.5~6.0mm |
| Screw Length | L≤30mm |
| Feed Speed | 40-60PCS/MIN |
| Capacity | 8500(M2.5*10)PCS |
| Communication | IO |
| Dimensions | 363×246×322mm |

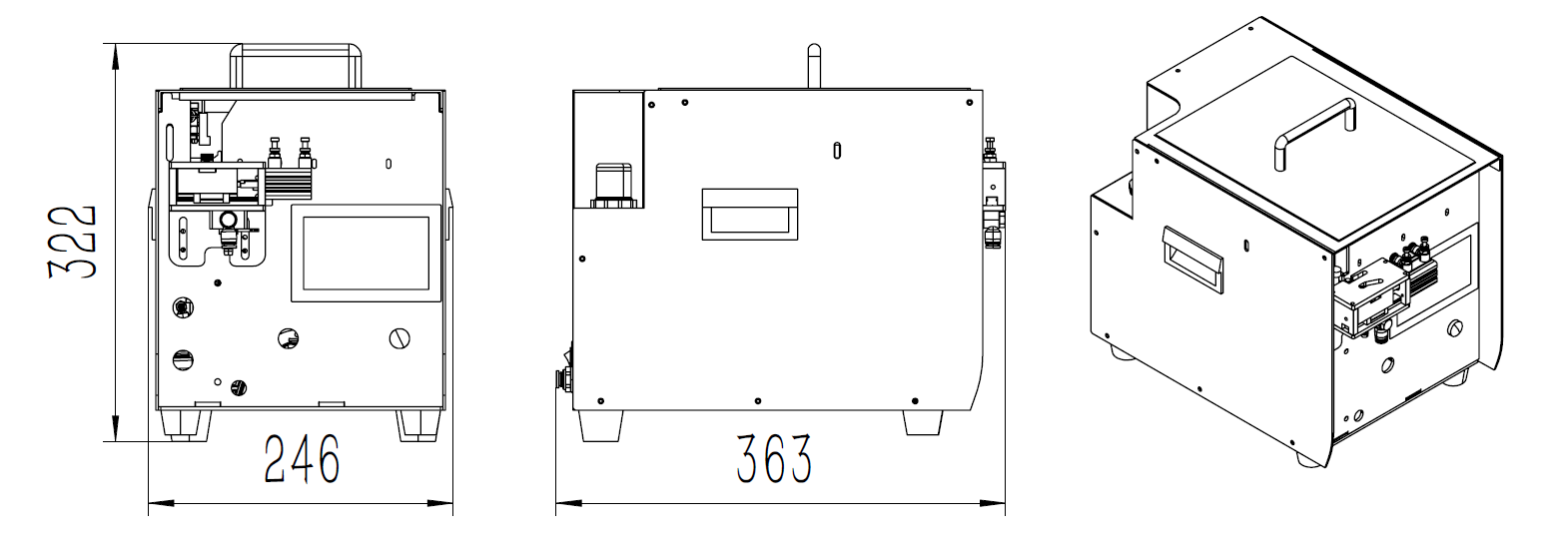

📐Dimensions(mm)
尺寸: 363×246×322mm
