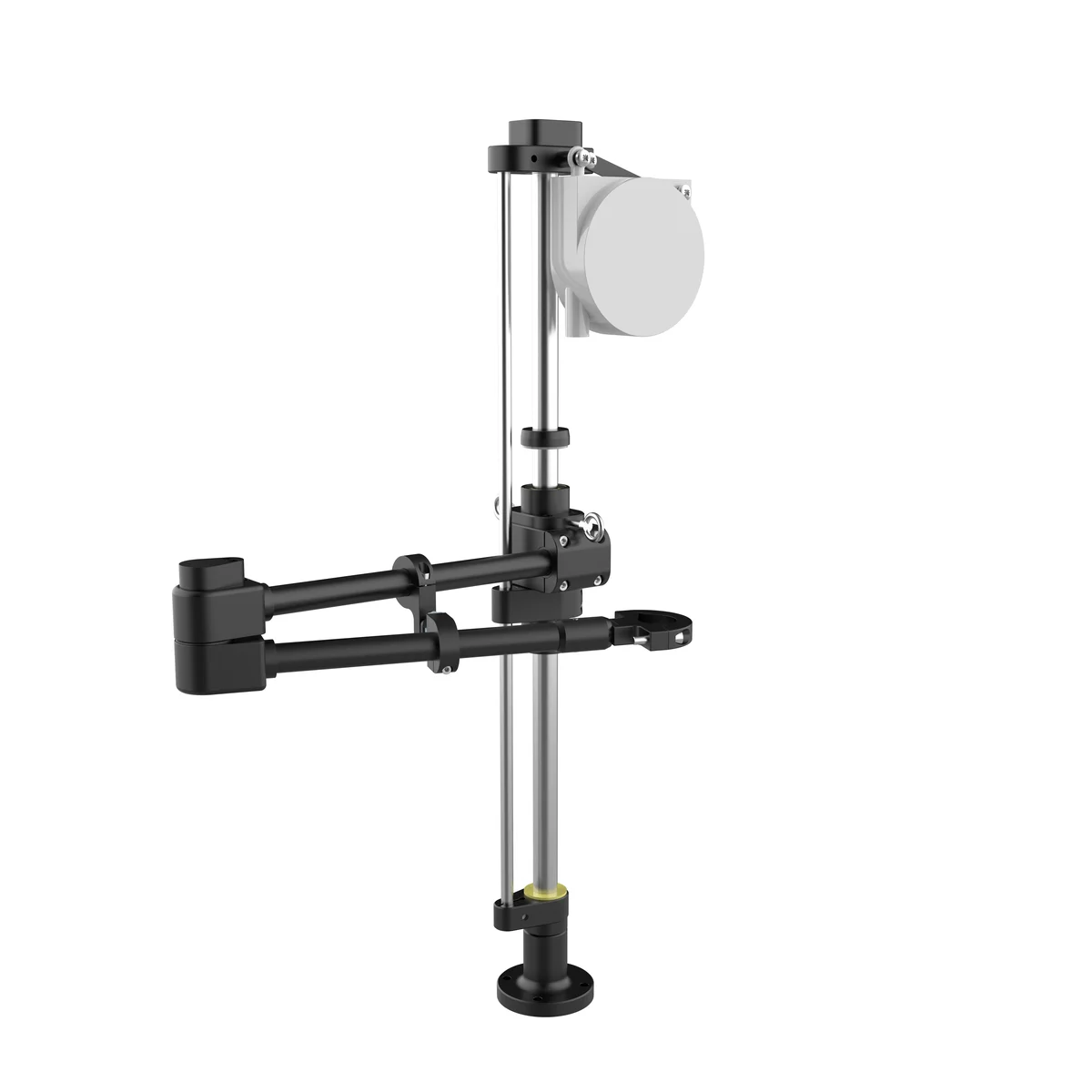

Aluminum Alloy Folding Arm
Model：MISE-R-650S/800S/950S
Max tool weight 2kg, working radius 650~950mm
Features
1
Minimalist exterior design
2
High-precision self-developed encoder
3
High smoothness spring crane
4
High-strength aluminum alloy arm
Specifications
| Parameter | Value |
|---|---|
| Working Radius | 650~950mm |
| Max Tool Weight | 2kg |
| Material | Aluminum Alloy |
| Encoder Type | High-precision Encoder |
| Rotation Range | - |
📐Dimensions(mm)
Dimensions: 425×85×705mm
Downloads
CAD
Aluminum Alloy Folding Arm
Form requiredDWG · 155KB
CAD
R-800S 2D Drawing
Form requiredDWG · 155KB
CAD
R-950S 2D Drawing
Form requiredDWG · 156KB
STEP
R-650S 3D Model
Form requiredGZ · 8.8MB (压缩)
STEP
R-800S 3D Model
Form requiredGZ · 8.8MB (压缩)
STEP
R-950S 3D Model
Form requiredGZ · 3.9MB (压缩)
PDF
PDF User Manual
PDF · Pending upload
